GLB-124
- Range:DCV:0.25-2.5-10-50-250-500-1000V ACV:10-50-250-500-1000V
- DcmA:O.5-5-50-500mA
- BATT:1.5V
- Ω:X1,X10,X100,X1K,X10K
- dB:-10-+22dB
- Sensitivity:DC 20KΩ/V,AC 9KΩ/V
- Accuracy:DC Ω:±2.5% F,S AC:±5% F,S
- Size:150X98X40mm
- Weight:220g

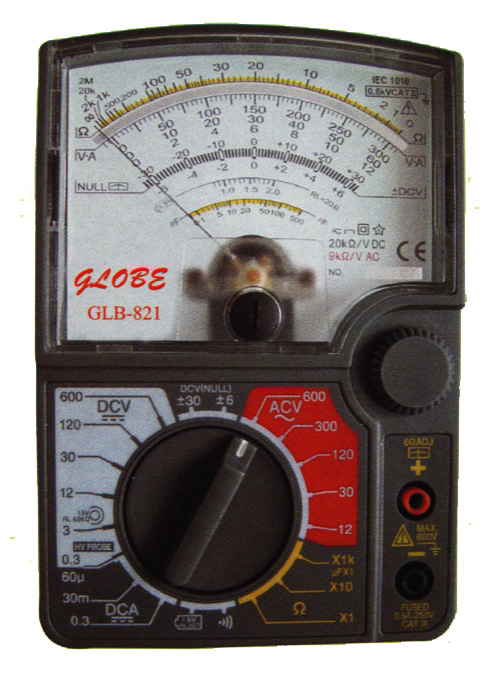

GLB-821
- Bena meter of drop shock,type with high sensitivity has been employed.
- A stand has adhered.
- It can be measurement in a zero center meter.
- A cintinrity, buzzer has adhered.
- The main unit case and the circuit board is made of fire retarding materials.
- Circuit protection is double protection is double protection according to fuse and diode.
- DCV=0.3/3/12/30/120/600V±3%f.s.
- ±DCV=±6±30V±5%f.s.
- ACV=12/30/120/300/600V±3%f.s.
- DCV=60μ/30μ/0.3A±3%f.s.
- Ω=2k/20k/2MΩ±3% of arc
- Battery check=2.0V
- Capacity=500μF
- Size=144X99X41mm
- Weight=approx.270g

GLB-15
- Range:DCV:10-50-250-1000V ACV:10-50-250-1000V
- DcmA:O.5-10-100mA
- Ω:0-100K-1MΩ
- dB:-10-+20dB
- Sensitivity:DC,AC,2KΩ/V
- Accuracy:DC,Ω:±2.5% F.S AC:±5% F.S
- Size:132X90X46mm
- Weight:200g

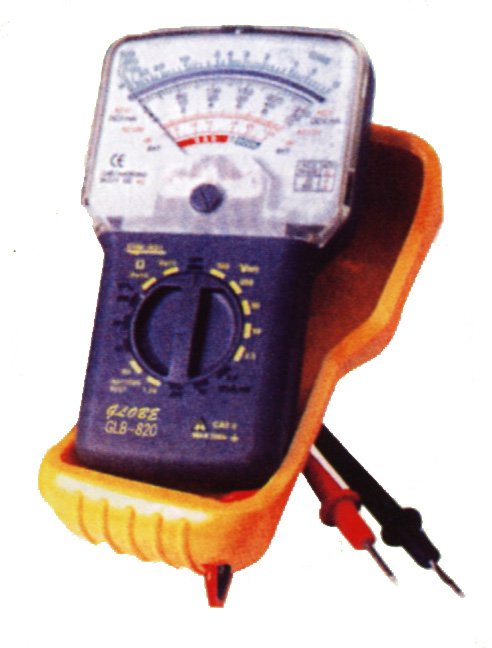

GLB-820
- Range:
- DCV:2.5-10-50-250-500V
- ACV:50-250-500V
- DCmA:0.5-10-250mA
- Ω:X10.X1K (Mid scale 3.6)
- dB:-10-+56dB
- Battery test: 1.5V,9V
- Accuracy:±5%F.S
- Sensitivity:DC,AC.2KΩ/V
- Size:90X150X35mm
- Weight:250g

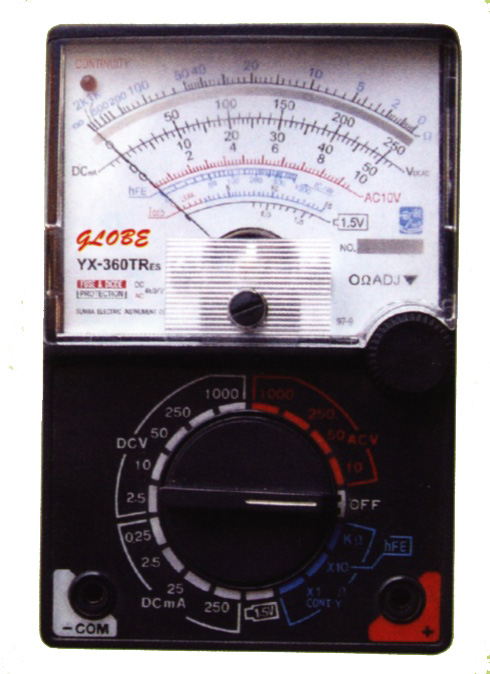

GLB-360TRES
- A taut-band type is adopted in the meter department.This and other shockproof designs enable the instrument to with stand shock even when it is dropped on a concrete floor from one meter height.
- This unit can determine the capacity of manganese and alkaline bauer/es by measuring their voltage when the load is 10Ω.
- By connecting the optional probe THP.the unit can measure temperatures form-20 to +220℃
- DCV=250m/10/50/250/500/1000V ±5%f.s.
- ACV=10/50/250/500/1000V ±5%f.s.
- DCA=250μ/25m/500mA±5%f.s.
- Ω=500/25K/1M Ω MAX ±5% of arc.
- Power source=R6(1.5V)X1
- Size=140X95X40mm
- weight=175g
