PRODUCTS-WUXI GLOBE ELECTRONICS METER CO.,LTD.

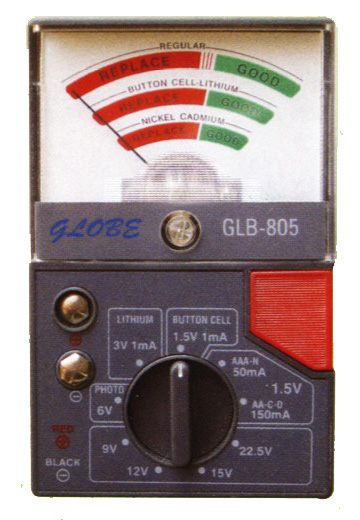

GLB-805(M032)
- BUTTON CELL 1.5V,lmA,AAN1.5V,50mA,AA.
- DC1.5V 150mA,
- LITHIUM3V.1 mA,6V.10mA,9V.1OmA,12V.1OmA
- 15V.10mA,22.5V.10mA
- DIMESIONS:100X64X33MM
- NET WEIGHT.85g

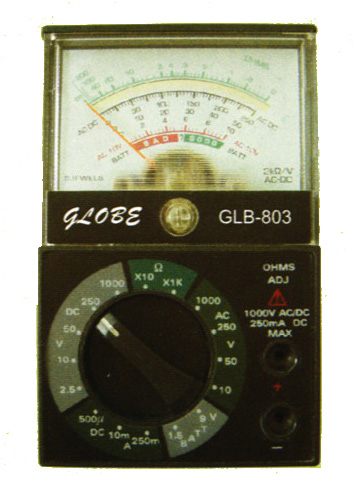

GLB-803(MF-133)
- 5 Functions 16 Measuring Ranges
- 2000 Ohms/Volt DC/AC Sensitivity
- Single knob function Switch
- Safety test leads & Instruction Manual
- Use one "AA" (1.5V) battery
- DCV=2.5/10/50/250/500V(2KΩ/v)±5%f.s.
- ACV=10/50/250/500V(2KΩ/v)±5%f.s.
- DCA=500μ/10m/250mA±5%f.s.
- Ω=2K/200K Ω MAX ±5% Of arc.
- Battery Test=1.5V/9V
- Size,Weight=100X64X35mm 95g

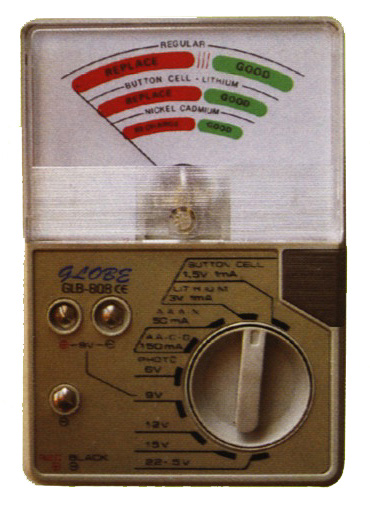

GLB-808(M032A)
- BUTTON CELL 1.5V,1mA,AAN1.5V.50mA,AA.
- DC1.5V 150mA,
- LITHIUM3V.1mA,6V.10mA,9V.1OmA, 12V.1OmA, 15V.10mA, 22.5V.1OmA
- DIMESIONS:130X90X42MM
- NET WEIGHT.150g

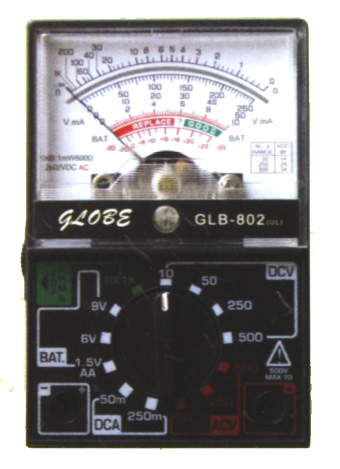

GLB-802(UL)
- Range:
- DCV:10-50-250-500V
- ACV:50-250-500V
- DCMA:50-250mA
- Ω:X1K
- BATT:1.5V/6V/9V
- Sensitivity:DC.AC 2K Ω/V
- Accuracy:DC.AC Ω:±5% F.S
- Size:90X60X30mm
- Weight: 150g

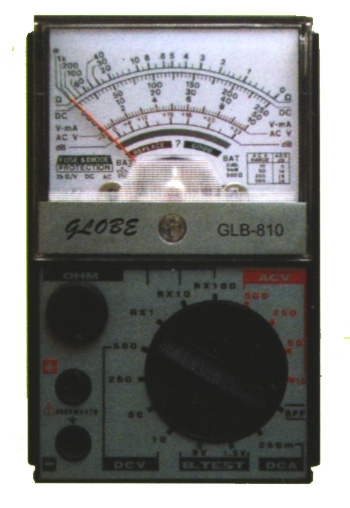

GLB-810
- DCV:0-10-50-250-500V(±5% F.S)
- ACV:0-10-50-250-500V(±5% F.S)
- DCMA:0-250mA(±5% F.S)
- BATTERY TEST:1.5V,9V
- RESISTANCE:RX1,RX10,RX1KQ (±5% Arc)
- BUILT-1N:BUZZER
- DIMESISONS:100X64X30MM
- NET WEIGHT:200g
