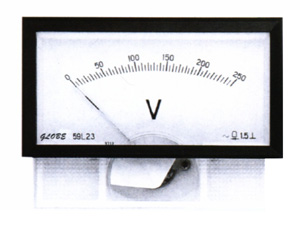

59C23 |

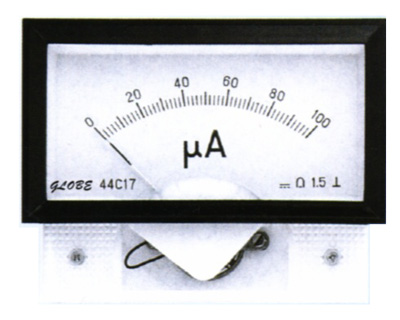

44C17 |

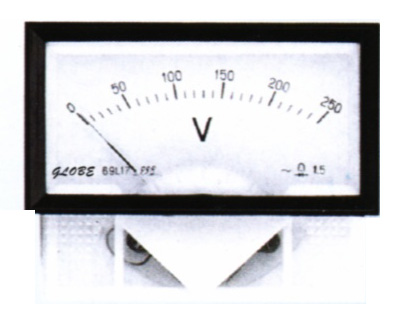

69C17 |
|
The meters are moving-coil panel meters with coremagnet,designed to be window mounted,and suitable for communication,broadcasting equipments and electronic instruments as well as vehicles.
The specifications are in agreement with GB/T76761998.
|

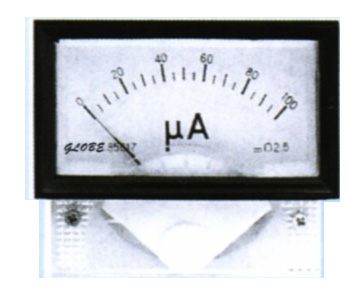

85C17 |
|
|
| |
Basic Specifications
- Acccuracy class:1.5,2.5
- Measuring range:DC 50u A-3000A,45mV-600V AC 10mA-3000A,10V-600V |
|
| |

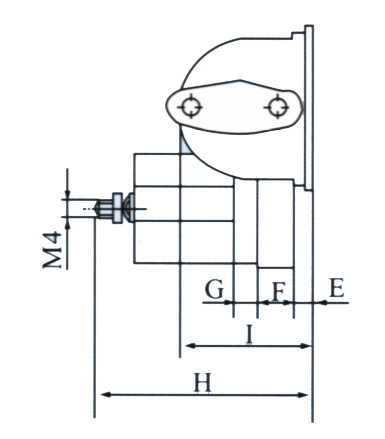

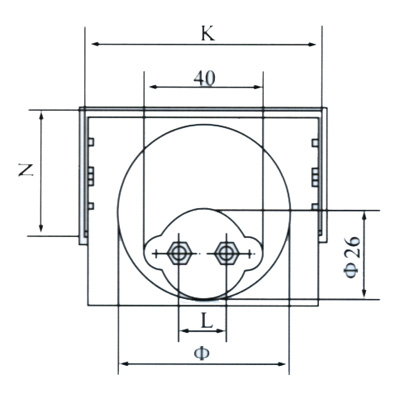

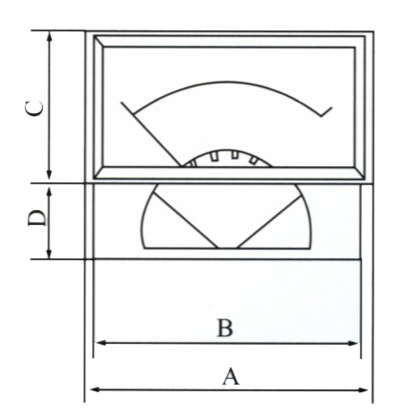

| Dimensions Chat |
| |
|
| |
Dimensions\Model |
59C23 |
44C17 |
69C17 |
85C17 |
A |
129 |
108 |
87 |
70 |
B |
120 |
100 |
80 |
64 |
C |
69 |
60 |
47 |
40 |
D |
25 |
24 |
21 |
20 |
E |
6 |
6 |
7 |
6 |
F |
12 |
13 |
10 |
10 |
G |
5 |
2 |
7 |
3 |
H |
68 |
66 |
64 |
64 |
I |
40 |
37 |
29 |
34 |
L |
15 |
15 |
15 |
15 |
ø |
73 |
58.5 |
60 |
49 |
K |
125 |
104 |
83.5 |
67.5 |
N |
65 |
57 |
44 |
37.5 |
|
|
| |
|
| |
|
