42C(L)20/240°
64C(L)1/240°
72C(L)1/240°

        The moving-coil pivot-jewel type long scale switchboard meters have been developed in the basis of Z series long scale meters to apply them to electricity, chemical and shipping industries etc.to indicate a variety of electric parameters, the meters can compare favorably with Z series long scale meters in accuracy as well as other quality parameters. The specifications are in agree ment with GB/T7676-1998.

Measuring range and Accuracy Class

Types\Parameters
Accuracy class
Units
Measuring Range
Remak
DC Ammeters
1.5
uA
300-1000
Directly connected
mA
1-1000
A
1-15
10-750
With external shunt of 75mV
DC Voltmeters
1.5
V
1.5-600
Directly connected
AC Ammters
1.5
A
0.5-20
50-600
With current transformer
AC Voltmeters
1.5
V
10-500
Directly connected
Power factor meters
2.5
(Single,three phase) 100,220,380V;1A,5A;cosø=-0.5-1-+0.5
Wattmeters,Varmeters
2.5
( Single,three phase) KW, MW, KVar, MVar, 100,127,220,380V; 1A,5A;
Frequency meters
2.5
100,220,380V,45-55Hz,55-65 Hz,350-450Hz,450-550Hz
Supressed zero Voltmeters
2.5
80-120V, 180-260V,300*50V
Overcurrent indicator
2.5
6 times of range value
Control signal indicators
1.5
1-5mA;2-10mA;4-20mA; 1-5V

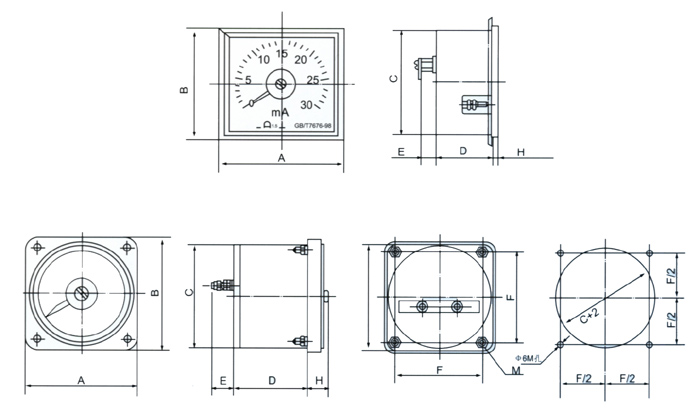

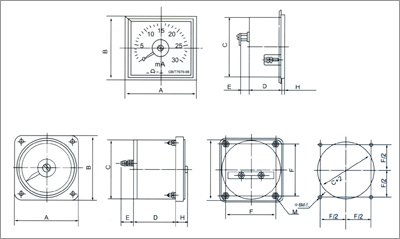

Dimensions Chat


Model\Size
A
B
C
D
E
H
F
M
42C(L)20/240°
120
120
112*112
55
15
7.5
64C(L)1/240°
96
96
90*90
92
10
6
51C5,51L5
42
72C(L)1/240°
72
72
66*66
100
10
6
61C5,61L5
